Custom Project: SS-AS

For our custom builds, nearly every component we use is designed and built in house or carefully selected for our choice vendor network. We work together using your design and our experience to tailor-fit your van to your vision.

Sold | 2022

About The Build

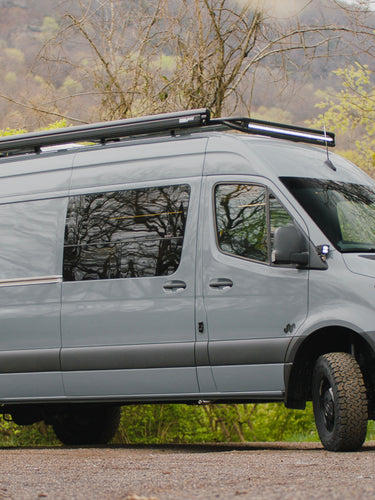

Built in 2022 as a custom project this sprinter 170wb 4x4 has an open floor plan with three bay upper cabinet, cassette toilet storage, small kitchenette with isotherm fridge and Dometic sink. The wheel boxes offer storage and also protect the electrical system on the P/S and water on the D/S. The P/S wheel box also has built in Fly Rod storage accessible from the back door.

Project Specs:

Chassis

  • 2022 Mercedes Sprinter 170” 4x4
  • 6cyl Turbo Diesel

Comfort & Safety

  • Espar D2L Heater
  • 2x Maxxair 7500k Vent Fan
  • Dometic 12V Air Conditioner
  • Wool Insulation And Sound Deadener
  • Marine Grade Coin Flooring
  • CO/Smoke Detector
  • Fire Extinguisher

Electrical

  • 2 Zone Dimmable LED Overhead Lighting
  • LED Under Cabinet Lighting
  • 200AH Lithium Battery Package
  • 120V System with 2000w Victron Inverter
  • Shore Power Inlet
  • 180W Solar Package
  • Reading Lights Above Bed
  • 3x USB Outlets
  • 2x 120v Outlets

Exterior

  • Site Seven Low Down Aluminum Roof Rack
  • Full Width Integrated Light Bar
  • 2x Rigid Scene Light
  • 5x BFG AT Tires
  • WeBoost Cell Booster
  • Fiamma F45s Awning
  • Mid-Mount Fog Lights

Living

  • Isotherm 130 Refrigerator w/ Freezer
  • Kitchenette w/ Residential Style Sink/Faucet and Drawers
  • Richlite Countertop
  • Overcab Shelf
  • 3 Bay Upper Cabinet w/ End Shelf
  • Marine Table Mount w/ Richlite Table Top
  • Exterior Shower

Seating & Sleeping

  • Seats 4 / Sleeps 4
  • Flarespace Flares
  • 4” Custom Memory Foam Mattress (Queen)
  • Storage bench with custom cushion
  • Platform Bed
  • Co-Driver Swivel Seat

Warranty

  • 1-year Site Seven Craftsmanship Warranty

Water

  • 20 Gallon Fresh Water Tank
  • 7 Gallon Grey Water Tank
  • Rear Door Accessed Outdoor Shower

3 bay upper cabinet

-Side Shelf -Blum hardware -Marine latches

Platform bed

-Removable platform bed -10x33 windows -USB and reading lights -rear door speakers

Lonseal Coin Flooring

2 person removable bench seat

Wheel box, electrical system, and Fly Rod storage.
